MER-132 RS232 over E1 Converter
MER-132 RS232 over E1 Converter
 Product description
Overview
     MER-132 is a high performance and self-learning long distance RS232 converter that could point-to-point transfer data from E1 channels to DB25 interfaces. It is compact in size and low in cost and suitable to cost effective bridging application. it works under the RS232 data networks. China has an extensive resource in E1 channels and so this product is widely used in network connection.

Features

 # Support 1* RS232 data interface
 # Support 1* E1 interface
 #
WAN line data rate: 2.048M
 # Line code: HDB3
 # Timing mode is selectable: Internal oscillator (default), Line clock derived from the receive signal
 # Internal power supply
 # Data connector: DB25
 # Type: standalone

Specifications
1、
E1 Port

Jitter: comply with G.742 and G. 823 standard
  Data rate: 2048Kbps
  Electric characteristic: comply with ITU-T G.703 standard
  Line code: HDB3
  Interface impedance: 75Ω(BNC)/120Ω(BALANCE)Connector: BNC(75Ω)/RJ45 (120Ω)
2、Data port
  Data rate: 115.2Kbps
  Connector: DB25

Electric characteristic: comply with RS232 standard
3、Size: 200mm(L)〜145mm(W)〜45mm(H)

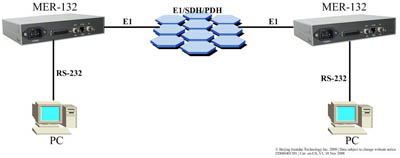

Typical Application
