Overview
MEL-160 is the most newly promoted product that can convert 1-16E1 to 10Base-T Ethernet. This protocol converter could support 1-16E1 to Ethernet, which extend the bandwidth to 32.768Mbps. It is widely used in two LAN connecting, remote monitor and video broadcasting.
Features
◆ Fully compatible with IEEE802.3, ITU-T G703 and G823
◆ Enable any group of CH1-CH16 E1 channel to transmit the data at will
◆ Extend the bandwidth to 32.768Mbps when using 16E1 channels
◆ Support hot-plug/unplug
◆ Support auto-inspection of effective E1 channel without interruption of data transfer.
◆ Automatically cut off the E1Channel when it has LOS and AIS alarm, and inform the remote end simultaneously
◆ Internal power supply, overall power consumption<10w, AC220V
Specifications
1、E1 Port
Bit rate: 2.048Mbit/s±50ppm
Line code: HDB3
Standard: in accordance with ITU-T G.703
Connector: BNC connector, line impedance 75ohm
Non-support the use of time slots
Jitter Performance: compatible with G.742 and G.823
2、Ethernet port
Data Rate: 10/100Mbps auto-negotiation
Standard: Compatible with IEEE802.3
Connector: RJ-45
Full duplex auto-negotiation
3、Size: 270×170×43（mm）

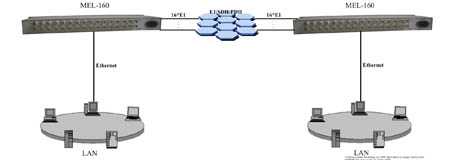

Typical Application
|
