MEL-200F 2Ethernet over E1 Converter
MEL-200F 2Ethernet over E1 Converter
 Product description
Overview
     MEL-200F is a high performance and self-learning long distance Ethernet bridge that could point-to-point transfer data from E1 channels to Rj-45 interfaces. It is compact in size and low in cost and suitable to cost effective bridging application. It could be used as an extension or divider to LANs with bit rate base structure. This equipment RJ45 interfaces are provided at the end of Ethernet LAN to accomplish various functions including double Ethernet interface broad band shared, MAC address self-learning, address filtering, address table maintenance and flow control. For the client which only require not more than 2 Ethernet, it can be reduce the net node, dispense with the device as HUB, consequently reduce the malfunction node.
Features

 # high quality Ethernet bridge/extension
 #
In accordance with the provisions of IEEE 802.3、802.3u Ethernet, ITU-T G.703, G.704 and G.823 protocols.
 # MAC addresses self-learning and addresses filtering functions, reducing the transmission load of the E1 circuit
 # Supporting 2.048Mbps transparent transmission in the E1 un-framing mode
 # Timing mode is selectable: Internal oscillator (default), Line clock derived from the receive signal
 # Internal power supply
 # RJ-45 connector: MDI/MDI-X auto-sensing
 # Type: standalone

Specifications
1、
E1 Port

Jitter: comply with G.703、G.704 and G. 823 standard
  Data rate: 64Kbps*N N=(1~31)
  Electric characteristic: comply with ITU-T G.703 standard
  Line code: HDB3
  Frame format: frame
  Interface impedance: 75Ω(BNC)/120Ω(BALANCE)Connector: BNC(75Ω)/RJ45 (120Ω)
2、Ethernet port
  Data rate: 10/100Mbps
  Connector: RJ-45

Electric characteristic: comply with IEEE 802.3 standard
3、Size: 210mm(W)〜140mm(L)〜40mm(H)

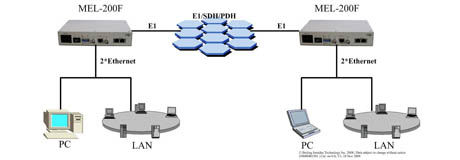

Typical Application
