Overview
The light transmission apparatus MDO-120G 1+1 dual SPF optical ports backup multi-service transmission equipment is manufactured based on our proprietary purpose-built integrated circuits. It integrates the traditional 4 channels E1, 1000Base-Tx, in one equipment so that it can operate both high-speed digital service and traditional TDM service in 1+1 SFP protecton Fiber link. It can widely used in many 1000M Ethernet network. Features
◆ Provide 1+1 dual SFP fiber insert slots, can realized bakcup protection
◆ Offering 4E1 (2.048Mbps) interfaces
◆ E1 Line code: compliant to G.703, E1 interface adopt digital phase locked and clock extracted technique
◆ Provide one 1000M Ethernet port, compatible with IEEE 802.3 standard
◆ Perfect alarm function display remote status
◆ up to 120Km distance without repeater
◆ Complete alarming function
Specifications
1、E1 Port
Compliance with ITU-T G.703
Data rate: 2.048Mbps
Impedance: 75ohm(BNC)/120ohm(BLANCE)
Line Code: HDB3
Frequency deflection: 2.048MHz ±100PPM
Jittering: compliance with ITU-T G.742、G.823
2、SFP Optical Port
Bit Rate: 1.25Gbps
Connector: SFP/LC
3、Ethernet Port
Data rate：1000Mbps
Connector：RJ45
Standard: comply with IEEE 802.3
4、Power supply Voltage: -48VDC or 220VAC±20%
5、Environment Working temperature: 0°C~40°C
6、Size: Standalone:485mm(W)×210mm(L)×44mm(H)

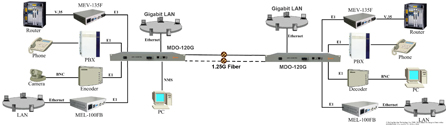

Typical Application
Order information
MDO-120G 4E1+1000M, 2*SFP/LC Slots, 220VAC or -48VDC
MDO-240G 8E1+1000M, 2*SFP/LC Slots, 220VAC or -48VDC
MDO-480G 16E1+1000M, 2*SFP/LC Slots, 220VAC or -48VDC
|
