Overview
The light transmission apparatus MDO-20E mini multi-service transmission equipment is manufactured based on our proprietary purpose-built integrated circuits. It integrates the traditional 2M E1, 10/100Base-Tx, in one equipment so that it can operate both high-speed digital service and traditional TDM service in one pair of Fiber. Features
◆ Favorable optic/electric specification provided by integral optic reception/transmission module
◆ Offering 2E1 (2.048Mbps) interfaces
◆ E1 Line code: compliant to G.703, E1 interface adopt digital phase locked and clock extracted technique
◆ Provide one 10/100M Ethernet port, compatible with IEEE 802.3 standard
◆ Perfect alarm function display remote status
◆ up to 120Km distance without repeater
◆ Complete alarming function
◆ Single-board architecture design
Specifications
1、E1 Port
Compliance with ITU-T G.703
Data rate: 2.048Mbps
Impedance: 75ohm(BNC)/120ohm(BLANCE)
Line Code: HDB3
Frequency deflection: 2.048MHz ±100PPM
Jittering: compliance with ITU-T G.742、G.823
2、Optical Port
Wavelength: 1310nm/1550nm (selectable)
Transmitting power: -10dBm/-5dBm (order)
Receiving sensitivity: < -36 dBm BER <10-11)
Connector: FC/SC
3、Ethernet Port
Data rate：10/100Mbps
Connector：RJ45
Standard: comply with IEEE 802.3
4、Power supply Voltage: -48VDC or 220VAC±20%
5、Environment Working temperature: 0°C~50°C
6、Size: Standalone:200mm(W)×145mm(L)×45mm(H)

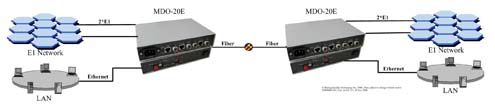

Typical Application
Order information
MDO-20E 2E1+100M, 40Km, FC, 75 or 120ohm, Single mode
MDO-20E-SSF 2E1+100M, 40Km, FC, 75 or 120ohm, Single firber,Single mode
MDO-10E 1E1+100M, 40Km, FC, 75 or 120ohm, Single mode
|
