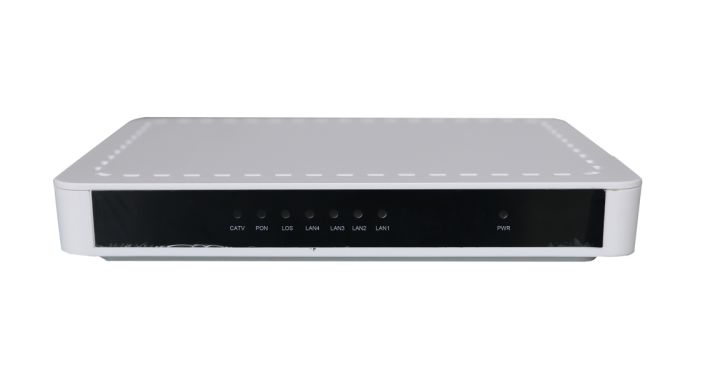

MU704GH 4GE+CATV GPON ONT
MU704GH 4GE+CATV GPON ONT
 Product description

MU704GH series 4GE+CATV Single Fiber GPON ONT






*  Brief Views

ONT MU704GH (4GE+CATV) series is a FTTH bandwidth access equipment .Based on mature and stable GPON technology, it has powerful functions with high stability ,QoS guarantee ,comprehensive management and flexible networking construction, etc.ONTMU704GH series is fully compatible with ITU-T G.984 technology standard.



It adopts single fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm .It only needs one-core fiber to transmit data service.



ONT MU704GH series has 1 PON port , four 10/100/1000BASE-T ports and one CATV output.

*  Functional Feature

n Full compatible with ITU-T G.984

n Support four GE auto-adapting Ethernet ports

n Support one CATV output

n Support OMCI and TR069 for remote management

n Support Web for local management

n Support Auto-negotiation and MDI/MDIX

n Support the Ethernet interface rate, working mode and flows control

n Support loopback at UNI

n Support packet filtering and anti-illegal message attack protection

n Support performance statistics of Ethernet lines

n Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.

n Support DHCP Option60 reporting the location information of the Ethernet interface

n Support PPPoE+ for accurate subscribers identification

n Support IGMP Snooping

n Support AES-128

n CATV support turn on/off RF output remotely

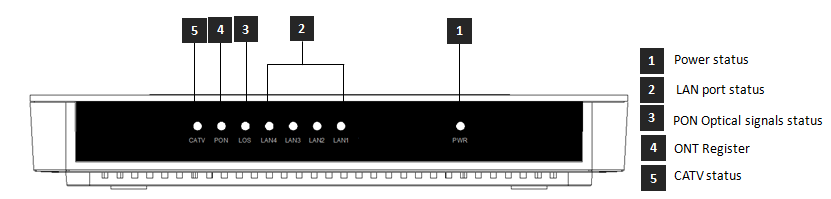

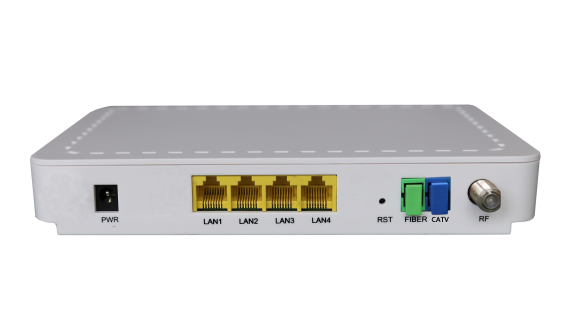

* Product interface and LED definitions

Indicator

Description

1

PWR

Power status

On: The ONT is power on

Off: The ONT is Power off

2

LAN1-4

LAN port status

On: Ethernet connection is normal

Blinking: Data is being transmitted through the Ethernet port

Off: Ethernet connection is not set up

3

LOS

GPON optical signals

On: Optical power lower than receiver sensitivity ;

Off: Optical in normal

4

PON

ONT Register

On: Success to register to OLT

Blinking: In process of registering to OLT

Off: Failed to register to OLT;

5

CATV

CATV status

On£ºCATV optical normal

Off£ºThe CATV signals are not received

* Specification

Item

Parameter

Interface

Uplink Interface

1*GPON port, FSAN G.984.2 standard, Class B+

Downstream Data Rate£º2.488Gbps

Upstream Data Rate£º1.244Gbps

SC/PC single mode fiber

28dB Link loss and  30KM distance with 1:128

CATV Interface

1 RF output

Female F-Type Connector

Ethernet Interface

4*10/100/1000Mauto-negotiation
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance

Power Interface

12V DC Power supply

Performance Parameters

PON Optical Parameter

Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: 0
¡«4dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -3dBm
Connector Type: SC
Optical Fiber: 9/125
ɥm single-mode fiber

Data Transmission
Parameter

PON Throughput: Downstream 950Mbps; Upstream 930Mbps
Ethernet: 1000Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms

Business Capability

Layer 2 wire speed switching

Support VLAN TAG/UNTAG£¬VLAN conversion

Support Port-based speed limitation

Support Priority classification

Support storm control of broadcast

Support link detection

Network Management

Management Mode

Standard compliant OMCI interface as defined by ITU-T G.984.4

Support TR069 and WEB management

Management Function

Status monitor, Configuration management, Alarm management, Log management

Physical Features

Shell

Plastic casing

Power

External 12VDC/1A power supply adapter

Power consumption: <7W

Dimension and Weight

Item Dimension£º200mm(L) x 140mm(W) x 33mm (H)

Item weight£º0.5kg

Environmental
Specifications

Operating temperature: 0 to 50ºC
Storage temperature: -40 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 5% to 95%(Non-condensing)

* CATV

Item

Parameter

Remark

Wavelength

1550 +/- 10nm



Optical return loss

>45dB



Input optical power

-15dBm¡«0dBm

MU704GH

-18dBm¡«-9dBm

MU704GHL

-18dBm¡«0dBm

MU704GHA

RF frequency

47MHz~1000MHz



RF output lever

84dBuV (@-5dBm@85MHz)

MU704GH

81dBuV (@-10dBm@85MHz )

MU704GHL

78dBuV (@-12~-2dBm@85MHz)

MU704GHA

CNR

>47dB (@-5dBm@ DS22 Channel)

MU704GH

>41dB (@-10dBm@DS22 Channel)

MU704GHL¡¢MU704GHA

CSO

>60dBc (@-5dBm@ DS22 Channel)

MU704GH

>60dBc (@-10dBm@DS22 Channel)

MU704GHL¡¢MU704GHA

CTB

>60dBc (@-5dBm@ DS22 Channel)

MU704GH

>60dBc (@-10dBm@DS22 Channel)

MU704GHL¡¢MU704GHA

RF output return loss

>14dB

MU704GH

>12dB

MU704GHL¡¢MU704GHA

RF impedance

75Ohm



AGC function

Support

MU704GHA

* Application

²  Typical Solution£ºFTTH,FTTO, PON+EOC

²  Typical Business£ºINTERNET, CATV, IPTV, VOD, IP Camera

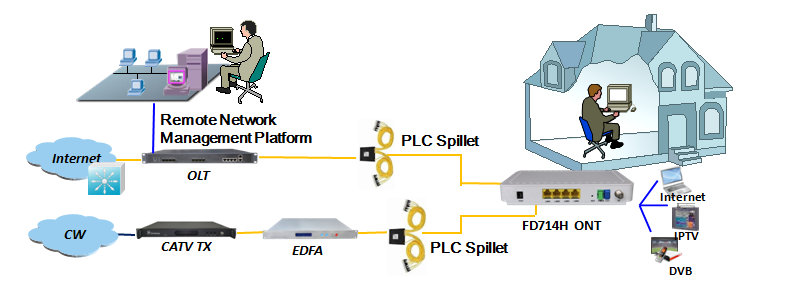

* Network Construction

* Ordering information

Product Name

Product Model

Descriptions

4GE +CATV

GPON ONT

MU704GH

4*10/100/1000M Ethernet interface, 1 GPON interface, Input optical power -15dBm¡«0dBm, Plastic casing, external power supply adapter

MU704GHL

4*10/100/1000M Ethernet interface, 1 GPON interface, Input optical power -18dBm¡«-9dBm, Plastic casing, external power supply adapter

MU704GHA

4*10/100/1000M Ethernet interface, 1 GPON interface, Input optical power -18dBm¡«0dBm, support AGC function, Plastic casing, external power supply adapter
