MD-W1300 10/100M External Power Media Converter
MD-W1300 10/100M External Power Media Converter
 Product description
Overview
     MD-W1300 10/100Mbps auto-negotiation Media Converter is the network communication device that realizing smooth network upgrade without any additional cost, it is high-performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network. It completely conforms to 10Base-T, 100Base-TX, 100Base-FX and IEEE 802.3x standards, and can connect with SERVER, HUB and SWITCH. MD-W1300 can be set into full/half duplex auto-negotiation by manual, and it has two transmission mode: SM and MM, and its interface has many selectable optic fiber connectors and RJ-45 connector.

Features

¡¡¡ô
Fully compatible with IEEE802.3 10Base-T£¬IEEE802.3u 100Base-TX(UTP)£¬100Base-FX
¡¡¡ô Work mode: Full duplex, half duplex, and Full/half duplex auto-negotiation
¡¡¡ô Up to 5Km distance on multi mode optical port and 120Km distance on single mode optical port
¡¡¡ô Wavelength: MM (850nm, 1300nm), SM (1310nm, 1550nm)
¡¡¡ô Twisted-pair connector: NODE/HUB or SWITCH (5 class UTP)
¡¡¡ô Provide 220VAC to 5VDC or -48VDC to 5VDC external power adapter
¡¡¡ô Indication light: PWR, TXL, SPD, FDX, RX, FXL Fully compatible with IEEE 802.3, IEEE802.3u,

Other features


¡ô Size: 95mm ¡Á 70mm ¡Á 25mm

¡ô Weight: 0.3Kg

¡ô Operating Environment: Temperature£º0¡æ~50¡æ

¡ô Storage temperature:-20¡æ~ +70¡æ

¡ô Humidity£º 5£¥~ 95£¥ (non condensation)

¡ô Product compatible with those protocols:

IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.1d IEEE802.1Q IEEE802.1p

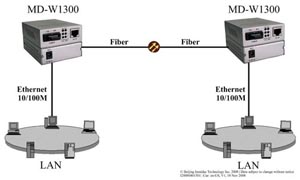

Typical Application


Order information
¡¡ MD-W1385    2Km, 10/100Mbps, MM
     MD-W1305    5Km, 10/100Mbps, MM
     MD-W1320¡¡20Km, 10/100Mbps, SM¡¡
     MD-W1340    40Km, 10/100Mbps, SM
     ......
