Overview
MD-500 10/100Mbps Auto-negotiation Media Converter is the network communication device that realizing smooth network upgrade without any additional cost, it is high-performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network. It completely conforms to IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-FX standards, and can connect with SERVER, HUB and SWITCH. MD-500 can be set into full/half duplex auto-negotiation by manual, and it has two transmission mode: SM and MM, and its interface has many selectable optic fiber connectors and RJ-45 connector.
Features
◆ Fully compatible with IEEE 802.3, IEEE802.3u· Support 10Base-T, 100Base-TX (UTP), 100Base-FX (Fiber)
◆ Up to 5Km distance on multi mode optical port and 120Km distance on single mode optical port
◆ Work mode: full duplex, half duplex, and full/half duplex auto-negotiation
◆ Wavelength: MM (850nm, 1300nm), SM (1310nm, 1550nm)
◆ Twisted-pair connector: NODE/HUB or SWITCH (5 class UTP)
◆ Indicator light: PWR, TXL, SPD, FDX, RX, FXL
Other features
◆ Size: 120mm × 87mm × 27mm
◆ Weight: 0.5Kg
◆ Power: 100V~275VAC 50~60Hz
◆ Working temperature：0℃~50℃
◆ Storage temperature:-20℃~ +70℃
◆ Humidity： 5％~ 95％ (non condensation)
◆ Product compatible with those protocols:
IEEE802.3 IEEE802.3u IEEE802.3x

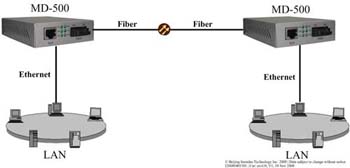

Typical Application
Order information
MD-585 2Km, 10/100Mbps, MM
MD-505 5Km, 10/100Mbps, MM
MD-520 20Km, 10/100Mbps, SM
MD-520-SSF 20Km, 10/100Mbps, SM,Single fiber
......
|
